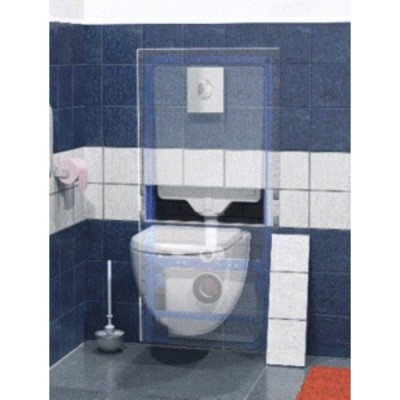

SFA SANIWALL PRO UP 3 AANSLUITZIJDEN AFVOER 22-32 INCLUSIEF INBOUWELEMENT GROHE + BEDIENIGSPANEEL
Interne referentie: WALLPROUPDAC
| Geschikt voor fecaliën: Ja |
| Geschikt voor buiteninstallatie: Nee |
| Opstelling achter toiletpot: Ja |
| Versnijdend: Ja |
| Materiaal pomphuis: Overig |
| Kwaliteitsklasse pomphuis: Kunststof vezelversterkt |
| Materiaal waaier / pompwiel: Polypropyleen (PP) |
| Kwaliteitsklasse materiaal waaier: PP-GF |
| Materiaal reservoir: Polypropyleen (PP) |
| Kwaliteitsklasse reservoir: PP-C |
| Reservoir-inhoud: 9.8 Liter |
| Aantal pompen: 1.0 |
| Volumestroom (BEP): 3.12 Kubieke meter per uur |
| Druk bij volumestroom (BEP): 55.0 Kilopascal |
| Max. debiet: 5.1 Kubieke meter per uur |
| Max. opvoerhoogte: 5.0 Meter |
| Max. werkdruk: 0.5 bar |
| Elektrische aansluiting: Kabel |
| Kabellengte: 1.2 Meter |
| Nom. spanning: 230.0 Volt |
| Aantal fasen: 1.0 |
| Frequentie: 50 Hz |
| Nom. stroom: 1.7 Ampère |
| Opgenomen motorvermogen (P1): 0.4 Kilowatt |
| Afgegeven motorvermogen (P2): 0.3 Kilowatt |
| Nom. bedrijfsmodus: S3 |
| Isolatieklasse volgens IEC: F |
| Toerental: 2800.0 Per minuut |
| Communicatie: Geen |
| Bluetooth-netwerk standaard: Nee |
| Radiostandaard WLAN 802.11: Nee |
| Standaard radio 2G / 3G / 4G: Nee |
| 2G-netwerk standaard: Nee |
| 3G-netwerk standaard: Nee |
| 4G-netwerk standaard: Nee |
| 5G-netwerk standaard: Nee |
| Interface signaal 0-10 V / 2-10 V: Nee |
| Interface signaal 0-20 mA / 4-20 mA: Nee |
| Interface signaal PT100 / PT1000 / PTC: Nee |
| Interface pulsbreedtemodulatie (PWM): Nee |
| Interface pulsteller: Nee |
| Potentiaalvrij schakelcontact: Nee |
| Met communicatie-interface RS-485: Nee |
| Met communicatie-interface RS-232: Nee |
| Ondersteunt protocol voor EtherNet/IP: Nee |
| Ondersteunt protocol voor KNX: Nee |
| Ondersteunt protocol voor PROFIBUS: Nee |
| Ondersteunt protocol voor PROFINET IO: Nee |
| Ondersteunt protocol voor CAN / CANOpen: Nee |
| Ondersteunt protocol voor Modbus TCP: Nee |
| Ondersteunt protocol voor Modbus RTU: Nee |
| Ondersteunt protocol voor BACnet MS / TP: Nee |
| Ondersteunt protocol voor BACnet IP: Nee |
| Ondersteunt protocol voor LON / LONWorks: Nee |
| Ondersteunt protocol voor LIN Bus: Nee |
| Mediumtemperatuur (continu): 35.0 graden Celsius |
| Omgevingstemperatuur: 5.0 - 40.0 graden Celsius |
| Aantal inlaatpoorten: 3.0 |
| Aansluiting inlaatzijde: Overig |
| Nom. diameter aansluiting inlaatzijde: Overig |
| Aansluiting perszijde: Overig |
| Nom. diameter aansluiting perszijde: DN 32 |
| Uitwendige buisdiameter aansluiting perszijde: 32.0 Millimeter |
| Met terugslagklep: Ja |
| Met ontluchting: Ja |
| Beschermingsgraad (IP): IP44 |
| Breedte: 434.0 Millimeter |
| Diepte: 220.0 Millimeter |
| Hoogte: 322.0 Millimeter |
| Met alarmfunctie: Nee |
| Alarmuitgang: Nee |
| Explosieveilig: Nee |
